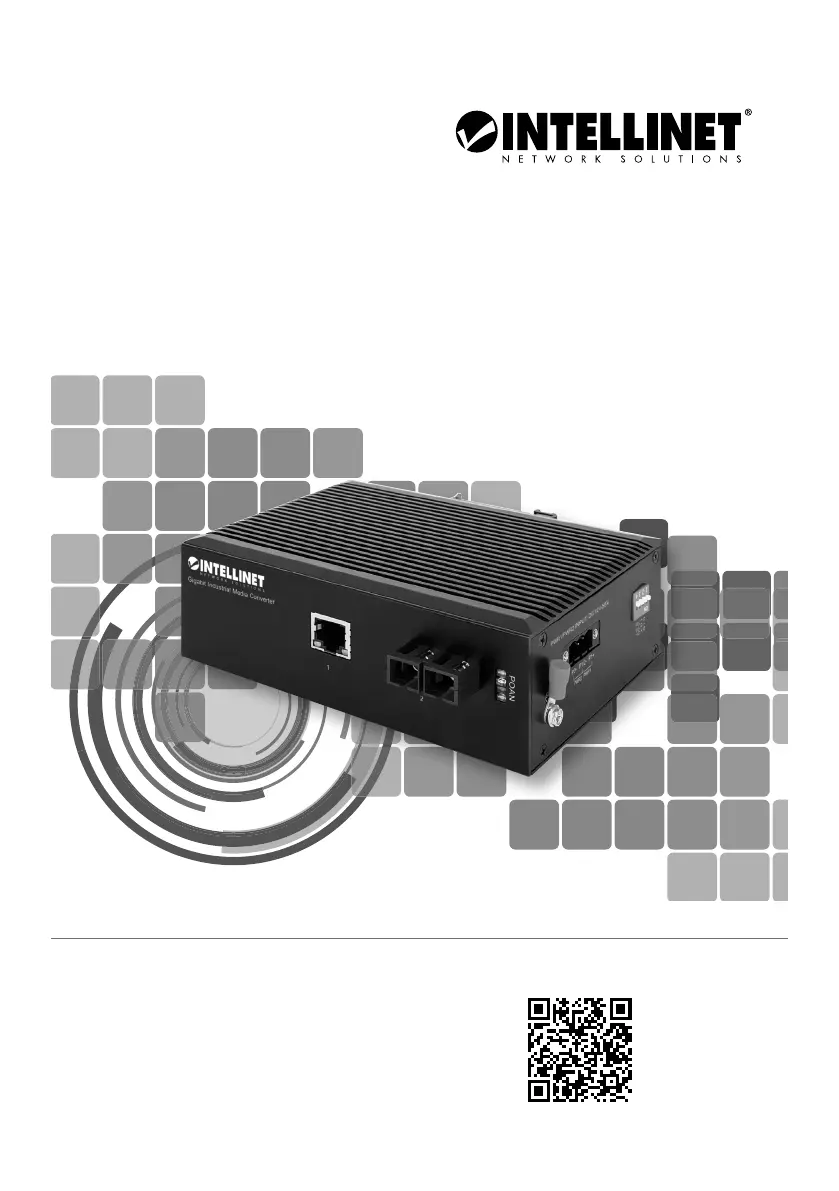

Page 1/16

Gigabit

Industrial

Media

Converter Instructions

Model 508346

(

IMCI-SMSCG20KM

)

or go to: register.intellinet-network.com/r/508346

Scan to

product warranty

Important: Read before use. • Importante: Leer antes de usar.

For additional benets:

Media converters connect two Ethernet networks over a longer distance using fiber optic cable.

For specifications, visit intellinetnetwork.com. Register your product at

Features

• One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)

• One 1000Base-LX fiber SC single-mode port supporting a maximum distance of 20 km (12.4 mi.)

• IP40 slim-type metal housing to withstand harsh industrial conditions

• Option for DIN-rail installation

• Two redundant DC inputs (12 - 58 V) with I/O terminal block

Twisted Pair – RJ45

Connect the UTP port of the media converter to an

RJ45 port on the network (e.g., to an Ethernet switch).

Cat5e or better cabling is recommended.

Fiber Optic

As shown, two fiber optic cables need to be connected

between two ideally identical media converters.

Make a connection from Media Converter 1 TX to Media Converter 2 RX, and from Media Converter 1 RX to

Media Converter 2 TX. Maximum length and fiber cable specification depend on the model. (See Models.)

Connections

Example

MEDIA CONVERTER1

MEDIACONVERTER 2

RJ45

OPTICAL FIBER

ETHERNET 1

ETHERNET 2

TWISTEDPAIR

TWISTED PAIR

Front panel

Item LED Color Status Description

RJ45 Port

Port activity Green

Flashing Sending or receiving data.

On Port is connected.

Off Port is not connected.

Speed Yellow

On 1000 Mbps speed.

Off 10/100 Mbps speed.

P — Power

Power and power-

supply-under-voltage

alarm (priority of

under-voltage alarm is

higher than power LED)

Green

Flashing

every 1s

Equipment power supply is lower than the lower limit of the

input range of DC 12 V, indicating an under-voltage alarm.

On Power channel is powered.

Off Power channel is not powered.

O — Optical Fiber Port

Fiber port and power

supply overvoltage alarm

(priority for overvoltage

alarm is higher than fiber

port Link/Act LED)

Green

Flashing

every 0.5s

The power supply of the device exceeds the upper limit of the

input range of DC 58 V, indicating an overvoltage alarm.

On Fiber port is connected.

Off Fiber port is not connected.

Flashing Sending or receiving data.

A — Alarm

Device alarm and data

transmission indicator

Red

Flashing

Console/RS232/RS485 port is sending data (LED

flashes to the rhythm of data being sent).

On An issue has been detected (temperature, dying gasp, etc.).

Off No alarm issue detected.

N — NMC

Management indicator

and data receiving

Green

Flashing

Console/RS232/RS485 port is receiving data (LED

flashes to the rhythm of data being received).

On Module embedded and initialization is complete.

Off No embedded module.

Instructions

Gigabit Industrial Media Converter

English

A—Grounding Chassis

ATTENTION: When installing unit, connect the chassis ground first; when uninstalling unit, disconnect chassis ground last.

Wire the grounding terminal to an earth-grounding object to prevent power spikes.

B—Terminal Block Installation

NOTE: Ensure all power is off/disconnected before beginning!

1 Loosen appropriate screws. Insert bare power-supply wires into appropriate terminal

slots (positive wire into positive slot; negative wire into negative slot).

2 Tighten appropriate screws to secure wires.

3 Install block into the device and tighten screws.

C—DIP Switch

Desktop Installation

Prior to use, place/position the device:

• on a level surface with at least 25 mm (approx. 1”) of clearance for ventilation;

• away from sources of electrical noise: radios,

transmitters, broadband amplifiers;

• within 100 m (approx. 328’) of network

devices it’s to be connected to.

DIN-Rail Installation

1 Angle spring of mounting clip

over top lip of DIN rail.

2 Push device down till clip clicks onto rail.

3 Ensure installation is stable.

Side Panel

B C

PWR1/PWR2 INPUT:DC10V-58V

P2+P1/2-P1+

PWR1 PWR2

1 2

Switch Position Description

1 — C/D

Console/Data selector

On Enable remote PD reset function.

Off Turn off remote PD reset function.

2 — LGY

Legacy

On Supports standard and non-standard PD power supply.

Off Only supplies power to standard PD; non-standard PD power supplies not supported.

3 — VLAN

Unused

4 — RST

Manual Reset

On Reset the remote PD device after 24 hours.

Off Release reset.

Placement

35 mm

InstructionsGigabit Industrial Media Converter
