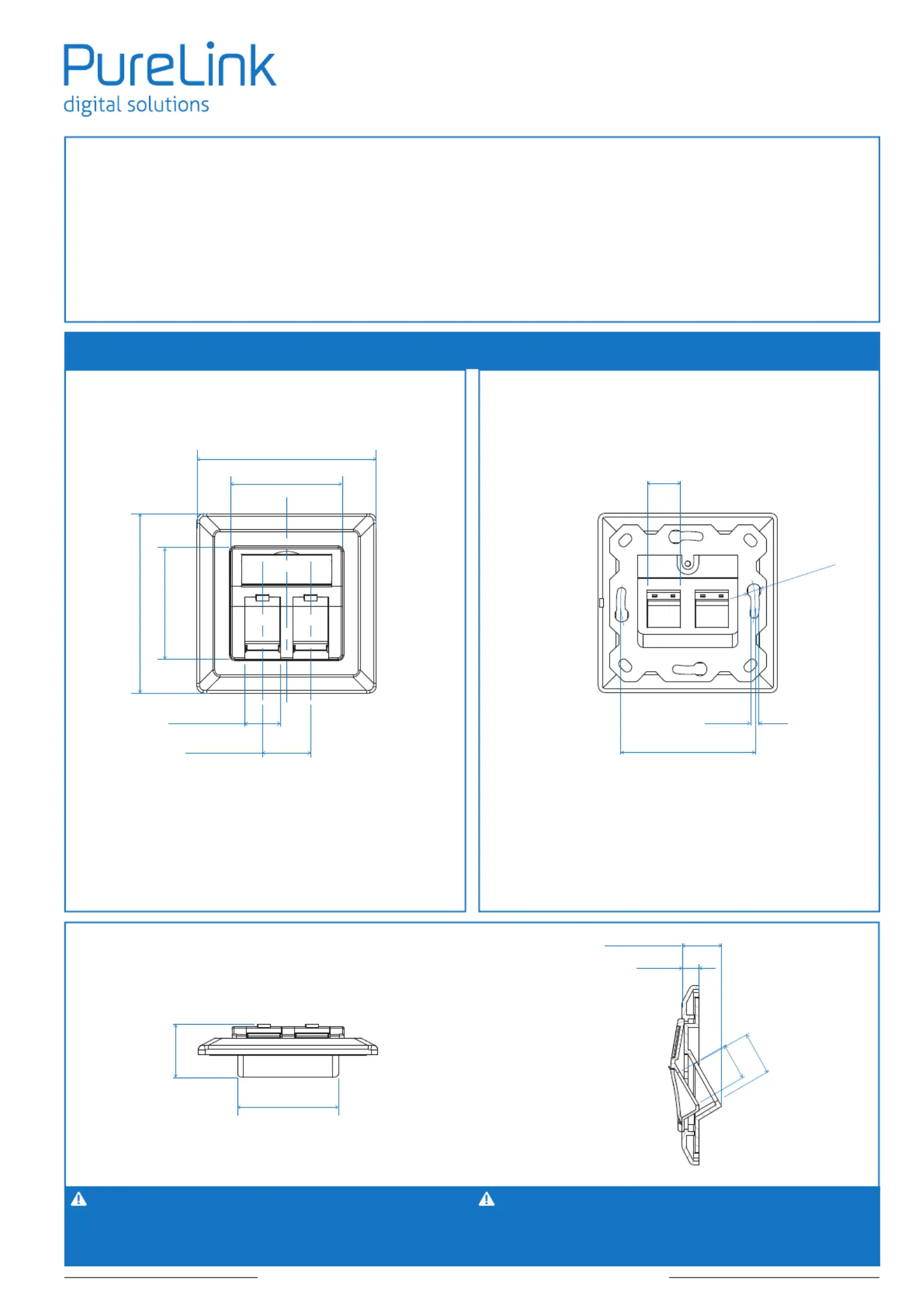

Keystone Wallplate | User Guide Item No.
MCA210
1.
3.
2.
User Guide
T568A
Pin 1
Color-coding information for
T568A & T568B wiring.
White / Green
Pin 2 Green
Pin 3 White / Orange
Pin 4 Blue
Pin 5 White / Blue
Pin 6 Orange
Pin 7 White / Brown
Pin 8 Brown
T568B
Pin 1 White / Orange
Pin 2 Orange
Pin 3 White / Green
Pin 4 Blue
Pin 5 White / Blue
Pin 6 Green
Pin 7 White / Brown
Pin 8 Brown
Front View Back View
Side View
SAFETY INSTRUCTION
Avoid connection errors - read installation instructions carefully before connecting!
Unplug the RJ45 Plug only when without voltage. Unplugging of device under voltage
(e.g. POE) may damage the contacts. Only be installed by qualified personnel. The safety
requirements must be observed.
SICHERHEITSHINWEIS
Anschlussfehler vermeiden - vor dem Anschluss Montageanleitung sorgfältig lesen!
Ziehen des RJ45 Steckers nur bei Geräten ohne Spannung. Ausstecken unter Spannung
(z.B. POE) kann zu Schäden an den Kontakten führen! Die Installation ist nur von Fachpersonal
durchzuführen. Hierbei sind Sicherheitsanforderungen zu beachten.
PureLink GmbH | Von-Liebig-Str. 10 | 48432 Rheine | Germany | www.purelink.de
50mm
80mm
50mm
15.9mm
21.5mm
80mm
15mm
4-Ø6mm
60mm
3.8mm
45mm
24mm
7.5mm
17.6mm
19mm
16mm
