RME ADI-2 Remote 2.0 Manual

RME Audio/video-converter ADI-2 Remote 2.0

Read below 📖 the manual in Italian for RME ADI-2 Remote 2.0 (23 pages) in the Audio/video-converter category. This guide has been helpful for 24 people and has been rated 4.5 stars on average by 2 users

Download PDF

Page 1/23

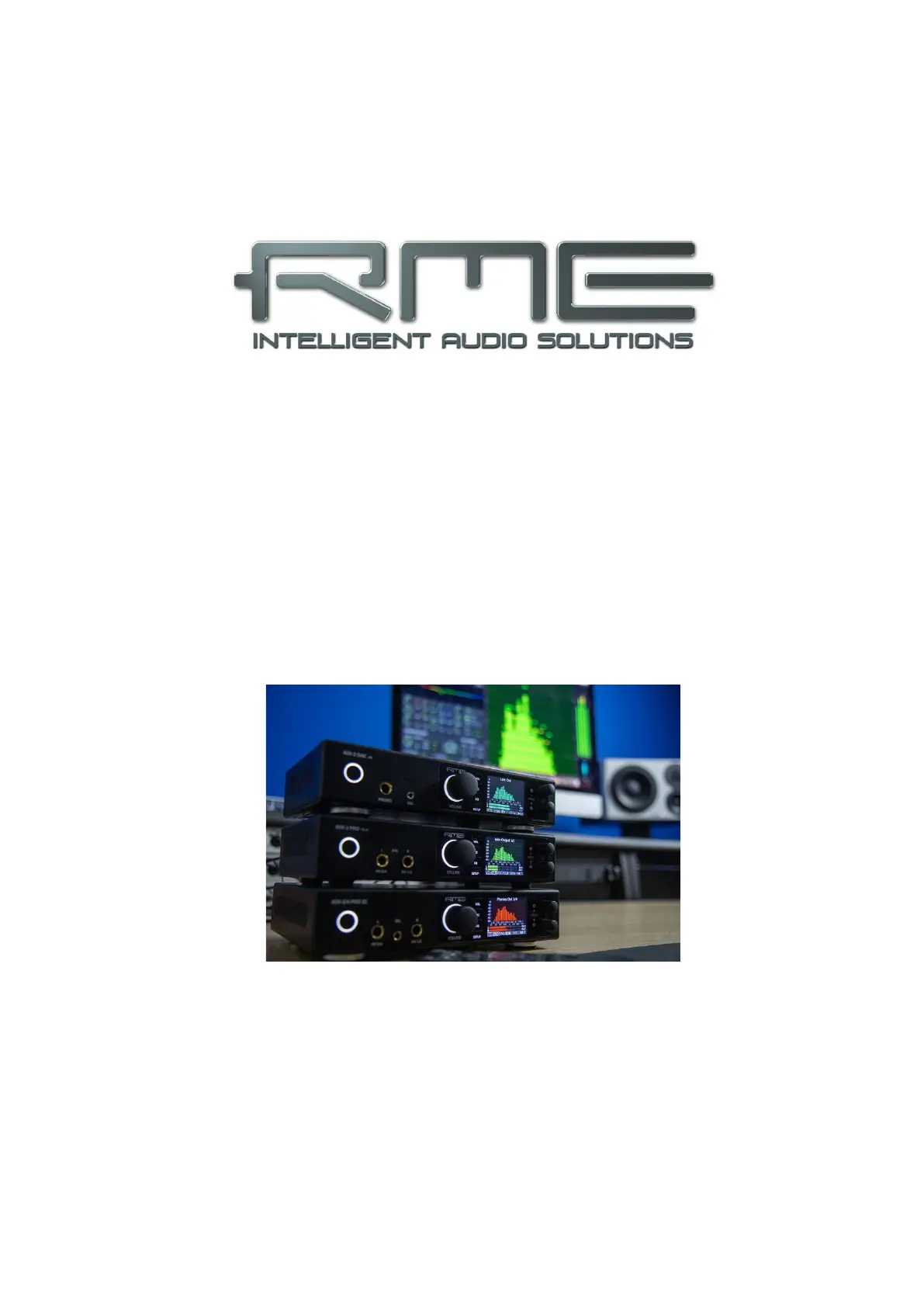

User’s Guide

ADI-2 Remote 2.0

Controlling the ADI-2 Series

from macOS, Windows and iPad

User’s Guide ADI-2 Remote - v 2.0

1 Introduction ............................................................... 3

2 System Requirements............................................... 3

3 Software Installation ................................................. 4

4 After Installation: First Step – Backup! ................... 4

5 Overview .................................................................... 5

6 Quick Guide ............................................................... 6

7 App Menu ................................................................... 8

7.1 File – Load Factory – EQ Examples ...................... 8

7.2 Options – Settings .................................................. 9

7.3 Options – Enter Fullscreen Mode ........................ 10

7.4 Window – Zoom 100% ......................................... 10

7.5 Window – Show State Overview .......................... 10

8 The Pages

8.1 Line Input

8.1.1 General ............................................................. 11

8.1.2 Parametric EQ .................................................. 11

8.1.3 Advanced Settings ............................................ 12

8.2 Line Output

8.2.1 General ............................................................. 13

8.2.2 Parametric EQ .................................................. 14

8.2.3 Advanced Settings ............................................ 15

8.3 Phones Output ................................................... 16

8.4 Device

8.4.1 Device Mode ..................................................... 17

8.4.2 Phones .............................................................. 18

8.4.3 Clock Settings ................................................... 18

8.4.4 Hardware .......................................................... 19

8.4.5 Display .............................................................. 20

8.4.6 Setups .............................................................. 21

8.5 EQ Presets

8.5.1 EQ Preset Editor ............................................... 21

8.5.2 EQ Presets ....................................................... 22

9 Appendix .................................................................. 23

User’s Guide ADI-2 Remote – v 2.0

1. Introduction

RME’s ADI-2 Pro, a true milestone, was released in 2016. Followed by the ADI-2 DAC, ADI-2 Pro

AE (Anniversary Edition), ADI-2 Pro FS, ADI-2 Pro FS R BE and lately the ADI-2/4 Pro SE, RME

has successfully combined usability with flexibility, and brought professional features into the

home and HiFi market.

7 years later RME once again shows what long-term relationship between RME developers and

RME customers means: The newly released ADI-2 Remote for macOS, Windows and iPadOS

not only comes for free, but also supports ALL devices of the ADI-2 series, back to the very first

ADI-2 Pro from 2016!*

* The original ADI-2 AD/DA converter does not have USB or DSP, and as such is not part of this series.

The software ADI-2 Remote can be downloaded from RME’s website:

Windows: https://www.rme-audio.de/downloads/adi2remote_win.zip

macOS: https://www.rme-audio.de/downloads/adi2remote_mac.zip

iPadOS: available via Apple’s App Store as ADI-2 Remote.

Please note the below system requirements, for updated firmware, matching driver and computer

hardware.

The MIDI protocol used by the ADI-2 Remote is available for downloaded as an Excel document:

https://www.rme-audio.de/downloads/adi2remote_midi_protocol.zip

2. System Requirements

Firmware

For the software to communicate with the ADI-2 device, and to support all final features, make

sure you have these latest firmware versions in use:

ADI-2 DAC: USB 81, DSP 61

ADI-2 Pro: USB 267, DSP 127

ADI-2/4 Pro SE (Hw Rev 6): USB 72, DSP 39

ADI-2/4 Pro SE (Hw Rev.7): USB 209, DSP 39

The latest firmware version comes in a FUT (Firmware Update Tool), download here:

Windows: https://www.rme-audio.de/downloads/fut_madiface_win.zip

macOS: https://www.rme-audio.de/downloads/fut_madiface_mac.zip

Note: To update the firmware under Windows, the installed MADIface series driver is required.

See the ADI-2 manual.

Windows

The ADI-2 Remote uses the same graphics engine as DigiCheck NG, so the same system re-

quirements apply: Windows 10 or higher, and a graphics card that supports Direct3D 12. This

might exclude some older computers, even when running Windows 10, for example with Intel

integrated graphics HD4600 and HD4000.

More information on Direct3D and an overview of supported graphics cards is available here:

https://en.wikipedia.org/wiki/Feature_levels_in_Direct3D

Product Specifications

Brand:	RME
Category:	Audio/video-converter
Model:	ADI-2 Remote 2.0
