Manual Revision: 09

09/2024

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/IES81GPOEW.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

JP: 取扱説明書 - jp.startech.com

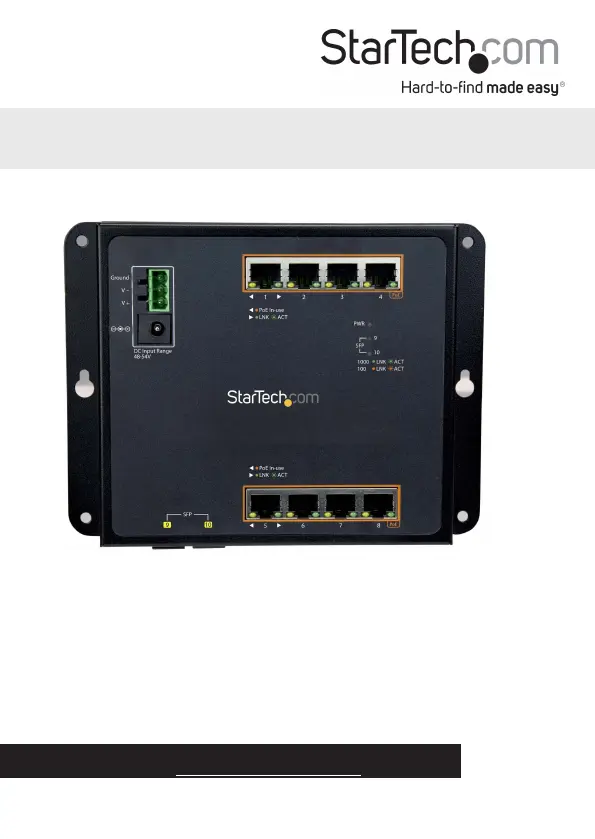

IES101GP2SFW

8-Port PoE+ GbE Switch with 2 SFP

Connections - Managed

*actual product may vary from photos

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do

not represent an endorsement of a product or service by StarTech.com, or an endorsement

of the product(s) to which this manual applies by the third-party company in question.

Regardless of any direct acknowledgement elsewhere in the body of this document,

StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks,

and other protected names and/or symbols contained in this manual and related documents

are the property of their respective holders.

Instruction manual

Table of Contents

Product Diagram ....................................................................................1

Front View .................................................................................................................................................... 1

Back View

..................................................................................................................................................... 1

Package Contents

..................................................................................................................................... 2

Requirements

............................................................................................................................................. 2

About the LED Indicators ...................................................................... 3

Wire the Power Inputs

...........................................................................4

Reboot the Network Switch..................................................................4

Reset to the Default Factory Settings

.................................................4

Installation

..............................................................................................5

Install the Network Switch onto a Wall.............................................................................................. 5

Install the Switch onto a Magnetic Surface

..................................................................................... 6

Mount the Switch onto a DIN Rail

....................................................................................................... 7

About the Web-Based GUI ....................................................................8

Accessing the Web-Based GUI .............................................................................................................. 8

Web-Based GUI Operation .................................................................... 9

Navigation Menu ....................................................................................................................................... 9

Port Status Panel

....................................................................................................................................... 9

Operational Buttons

................................................................................................................................. 9

Navigation Menu

....................................................................................................................................... 10

Home Page

.................................................................................................................................................. 10

Accessing the Conguration Manager

.............................................................................................. 10

Applying Changes and Setting the Current Conguration

....................................................... 11
