Page 1/11
All other registered trademarks belong to their respective companies.
www.thermaltake.com

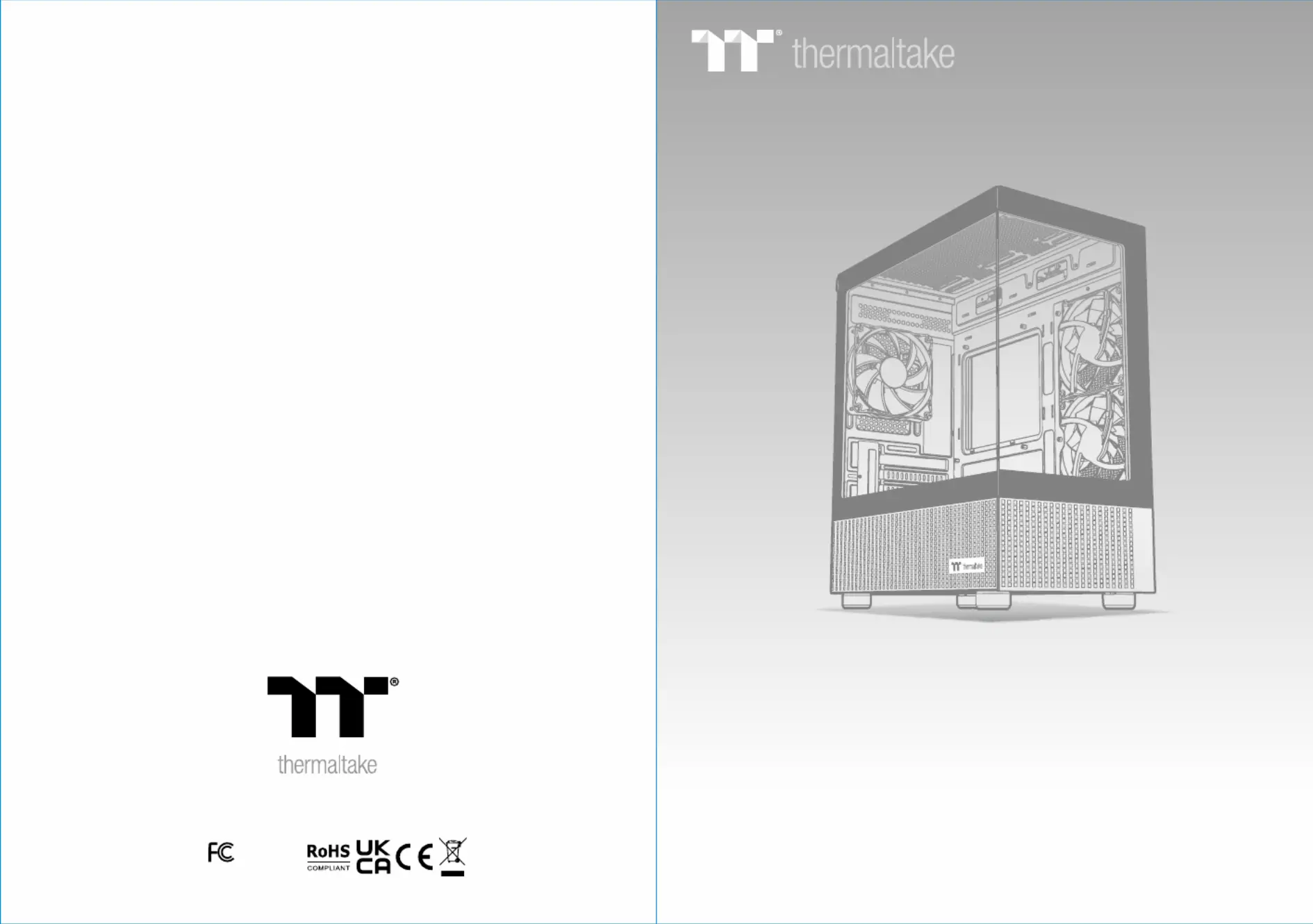

User's Manual
Benutzerhandbuch
Mode demploi
Manual del usuario
Manuale dellutente
Manual do Utilizador
Руководство пользователя
kullan c elkitabı ı ı
(EEE Yönetmeli ine Uygundur)ğ
© 2024 Thermaltake Technology Co., Ltd. All Rights Reserved. 2024.04
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
View 170 TG ARGB
Join Tt Community To Receive Benefits
Tt LCS-Liquid Cooling Support Certification
TT Premium
Dear Valued Customer,
Thank you for choosing Thermaltake.
As a new user we value your thoughts and opinions and
your feedback is important to us. We at Thermaltake
would like to use this opportunity to invite you to join our
Community Forums. Register today to start enjoying the
full benefits of our community.
Benefits of being a member:
Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways
Tt LCS Certified is a Thermaltake exclusive certification
applied to only products that pass the design and
hardcore enthusiasts standards that a true LCS chassis
should be held to. The Tt LCS certification was created
so that we at Thermaltake can designate to all power
users which chassis have been tested to be best
compatible with extreme liquid cooling configurations to
ensure you get the best performance from the best
features and fitment.
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
TT Premium
To continue achieving the corporate mission of delivering the
perfect user experience, Thermaltake developed “TT Premium”
with the essence of combining supreme quality products with a
new logo design. TT Premium is far more than just a guarantee
of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltake’s desire to be the most innovative
brand in the PC hardware market. To satisfy the demand of the
high-end PC users, TT Premium follows its core values of
Excellent Quality, Unique Design, Diverse Combinations and
Boundless Creativity to provide a high performance PC product
for every enthusiast. http://ttpremium.com
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
Chapter 1. Product Introduction
Specification
Accessory
Warning and Notice
1.0
1.1
1.2
01
02
03
Contents
Chapter 2. Installation Guide
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
Remove Panels
Power S upply Unit (PSU) Installation
Motherboard Installation
3.5& 2.5HDD Installation
VGA Card Installation
Air Cooling Installation
AIO Liquid Cooling Installation
I/O Connection
ARGB Control Instruction
Remove Filters
06
07
08
09
10
11
12
13
13
14
Specification
01 02
Accessory
Figure Parts Name Q’ty Used for
Screw M3 x 5mm
Stand-off #6-32 x 6.5mm
Zip Ties
18
3
Motherboard / 2.5” HDD / SSD
Stand #6-32 x 6mm
6
Power Supply
Backup
Cable Management
Screw #6-32 x 6mm
8
3.5” HDD
5
View 170 TG ARGB View 170 TG ARGB
Micro Case
Radiator Support
Case Type
Dimension (H*W*D)
Panel
Material
438 x 212 x 377.5 mm (17.24 x 8.35 x 14.86 inch)
Tempered Glass x 2
SPCC
Fan Support
Clearances
Drive Bays
1 x 3.5”, 2 x 2.5
Expansion Slots
4
Motherboards
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port
PSU
USB 3.0 x 2, HD Audio x 1
Standard PS2 PSU (optional)
160 mm
340 mm
180 mm
Right
Top
Rear
Power Cover
2 x 120 mm, 1 x 120 mm
2 x 120 mm, 1 x 120 mm
2 x 120 mm, 1 x 120 mm
2 x 140 mm, 1 x 140 mm
1 x 120 mm
CPU cooler
max height
VGA max length
PSU max length
Top
Rear
1 x 120 mm
1 x 240 mm, 1 x 120 mm
Cooling System
Right (intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2
Rear (exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Screw #6-32 x 28mm
8
Case Fan
Clip
2
Backup
1 x 280 mm, 1 x 140 mm
