Page 1/11
MFP112
User Manual
11 Input Multi-Format Presentation Switch
Matrix
Switcher
MFP112 USER MANUAL MFP112 USER MANUAL
03
contact support@blustream.co.uk / support@blustream.com.au
02
www.blustream.co.uk
Our MFP112 is a multi-format presentation switcher with in-built video scaling, audio
embedding, audio de-embedding, EDID management and HDBaseT connectivity.
The MFP112 works in 2 modes - as an 11 input dual output switcher or as a 2 output matrix.
With control of the switcher using the front-panel push buttons, IR remote control, TCP/IP
or RS-232 interface it is an ideal solution for commercial installations.
Introduction
FEATURES:
• MFP112 Switcher can function in 2 modes:-
Splitter mode - Both HDMI output 1 & HDBaseT
output 2 display the same selected input.
Matrix Switcher mode - HDMI/HDBaseT inputs are
independently switchable to HDMI output 1
& HDBaseT output 2.
HDMI output 1 has access to HDBaseT input + HDMI
inputs 1-4 ONLY (HDMI signal pass-through including
4K 30 Hz resolution).
HDBaseT output 2 is a scaled and formatted output
(user configured) that has access to all HDMI,
HDBaseT and Analogue video inputs with associated
audio.
• Built-in video scaling, both up-scaling (maximum of 1080p)
and down-scaling capabilities (including 4K 30Hz to lower
resolutions).
• HDBaseT output (output 2) for distribution of
video sources up to 100m distance (4K up to 70m)
with bi-directional IR & RS-232 and LAN serving (*HDBaseT
Receiver sold separately)
• HDBaseT input for integration of remote HDMI source
up to 100m distance (4K up to 70m) with bi-directional IR &
RS-232 & LAN serving (*HDBaseT Transmitter sold
separately)
• Video inputs support all industry standard video
resolutions including VGA-WUXGA and 480i-4K where
applicable.
• Scaled video output resolutions include 720p, 1080P,
1280x1024, 1024x768, 1360x768, 1440x900 & 1680x1050.
• Audio embedding - Independent Analogue L/R audio input
can be embedded to HDMI/HDBaseT outputs + Analogue
L/R audio and Coaxial digital outputs concurrently (Feature
available on HDMI/HDBaseT outputs 1 + 2 in Splitter mode
and HDBaseT output 2 only in Matrix Switcher mode).
• HDMI audio breakout to Analogue L/R audio and Coaxial
digital outputs concurrently (linked to HDBaseT output
2 when in Matrix Switcher mode). Note: input must be 2ch
PCM for Analogue audio output to work, does not downmix 5.1ch
audio signals.
• Volume control of HDMI, Analogue L/R audio and Coaxial
digital outputs.
• Supports all known HDMI audio formats on HDMI pass-
through, including Dolby TrueHD, Dolby Atmos, Dolby
Digital Plus and DTS-HD Master Audio transmission.
• Front panel display for status feedback.
• Control via front panel, IR and RS-232.
• 3rd Party drivers available for all major home control
brands.
• Advanced EDID management.
• HDCP compliant.
Features 03
Panel Descriptions 04/05
MFP112 Control Ports 06
Remote Control Descriptions 07
HDBaseT Receiver Options 08
HDBaseT Transmitter Options 09
Terminating HDBaseT CAT Cable 10
Understanding HDBaseT Status Lights 10
IR Distribution 11
Switcher Front Panel Display 12
Adjusting The Video Output Resolution 13
EDID Configuration 14
Application Diagram 15
Specifications 16
Package Contents 16
Maintenance 16
RS-232 Commands 17/18
Infrared Commands 19/20
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Surge protection device
recommended
This product contains sensitive electri-
cal components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Safety And
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of
cables is recommended for optimal
performance.
To minimize interference of the un-
shielded twisted pairs in the CAT5e/6
cable do not run the HDBaseT /
Cat5e/6/6a cabling with or in close par-
allel proximity to mains power cables.
Do not substitute or use any other
power supply other than the enclosed
unit, or a Blustream approved replace-
ment.
Do not disassemble Blustream hard-
ware for any reason. Doing so will void
the manufacturer’s warranty.
MFP112 USER MANUAL MFP112 USER MANUAL
05
contact support@blustream.co.uk / support@blustream.com.au
04
www.blustream.co.uk
12 13 14 16 18 19 20
7

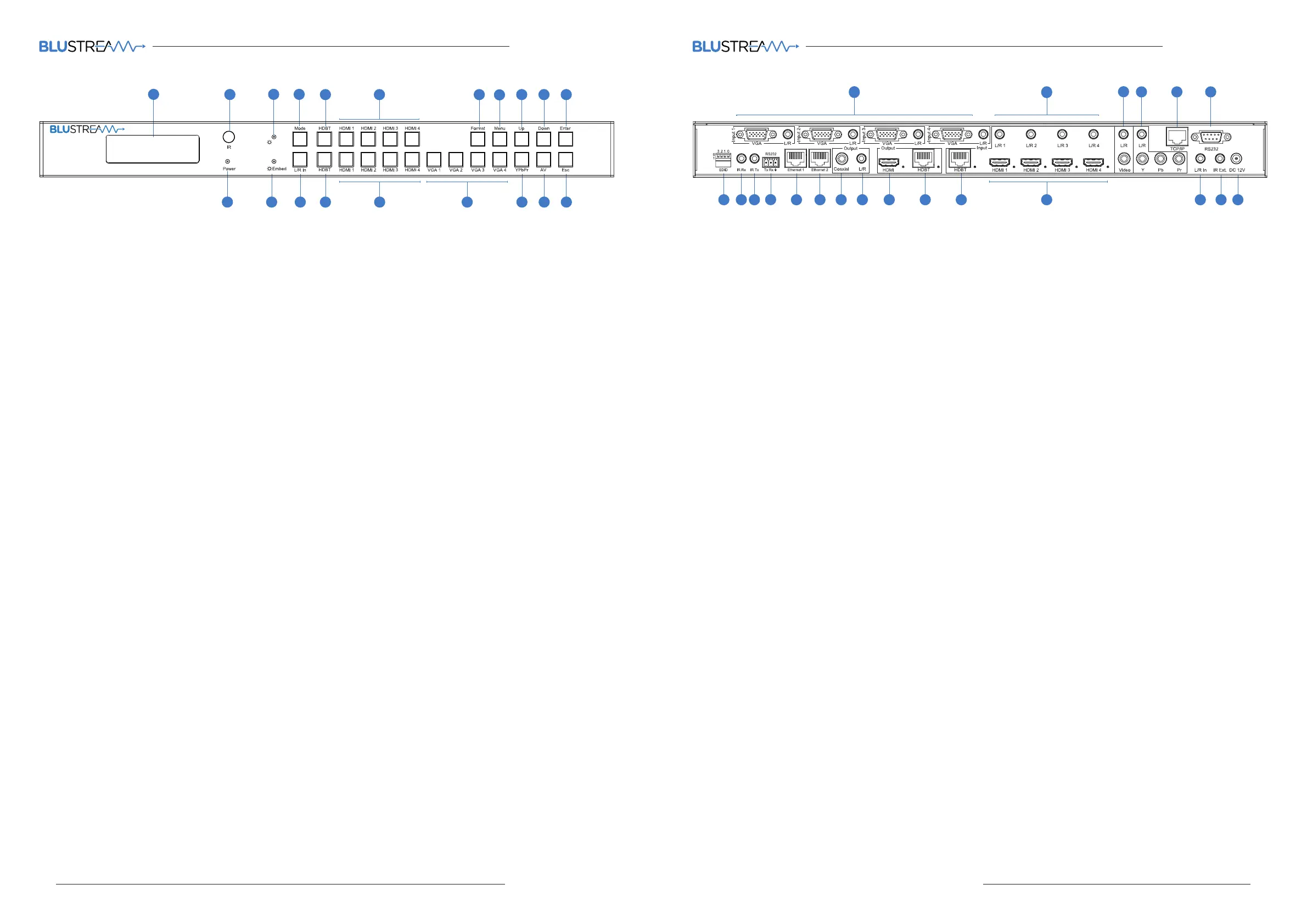

1 LCD display - Shows the status of
input-output selection, EDID info etc.
2 IR receiver window.
3 Matrix Switcher LED indicator -
When the LED is lit, Matrix Switcher
mode is active and both HDMI
outputs switch independently.
When the LED is not lit the Matrix
switcher is in Splitter mode and
both HDMI outputs will display the
same selected video input.
4 Mode button - Press to switch
between Matrix Switcher and
Splitter modes.
5 HDBaseT input selection button
for HDMI output 1 when in Matrix
Switcher mode.
6 HDMI input selection buttons for
HDMI output 1 when in Matrix
Switcher mode.
7 Format set button - Press to change
the output resolution.
8 Menu button - Press to enter EDID
set mode, volume setting or F/W
information.
9 Up selection button - Press to
change segment’s value.
q Down selection button - Press to
change segment’s value.
w Enter button - Press to confirm the
settings.
e Power LED indicator - Indicate the
status of power.
r Embed LED indicator - When the
LED is lit, Audio embed mode
is active. When active the L/R
Analogue input will be embedded
onto the HDMI/HDBaseT outputs.
In Splitter mode analogue audio
is embedded to both of the HDMI/
HDBaseT outputs with the ability
to adjust the volume. In Matrix
Switcher mode Analogue audio
will only be embedded onto
HDBaseT output 2.
t L/R in selection button - Press to
embed the Analogue L/R audio
input to the HDMI/HDBaseT
outputs (as above).
y HDBaseT input selection button -
Press to select the HDBaseT input
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in Splitter mode.
u HDMI input selection buttons 1 to
4 - Press to select the HDMI input
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in Splitter mode.
i VGA input selection buttons 1 to 4
- Press to select the VGA input with
associated Analogue L/R audio
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in Splitter mode.
o YPbPr (Component video) input
selection button - Press to select
the YPbPr input with associated
Analogue L/R audio input.
p AV input selection button - Press
to select the Composite video AV
input with associated Analogue L/R
audio input.
a ESC-Press to exit the menu.
1 VGA inputs 1-4 - VGA inputs with
associated L/R analogue audio input.
2 L/R in 1-4 - Connect L/R analogue
audio inputs to replace original HDMI
audio with analogue audio on HDMI
inputs 1-4.
3 AV input - Composite video input with
associated L/R analogue audio input.
4 Component (YPbPr) input - YPbPr
input with associated L/R analogue
audio input.
5 TCP/IP port - For control of the switcher
from PC or control processor.
6 RS232 port - For control of the switcher
from PC or control processor.
7 EDID Dip-switches - For manual EDID
management - See page 14 for EDID
settings.
8 IR RX - For IR distribution TO a
connected Blustream HDBaseT TX
and/or RX (see ‘MFP112 control ports’
for further explanation).
9 IR TX - For IR distribution FROM a
connected Blustream HDBaseT TX
and/or RX (see ‘MFP112 control ports’
for further explanation).
q 2-way RS-232 - For bi-directional
RS-232 distribution to a connected
compatible Blustream HDBaseT TX
and/or RX (see ‘MFP112 control ports’
for further explanation).
w Ethernet port 1- For LAN distribution
to a connected compatible Blustream
HDBaseT TX and/or RX (see ‘MFP112
control ports’ for further explanation).
e Ethernet port 2- For LAN distribution
to a connected compatible Blustream
HDBaseT TX and/or RX (see ‘MFP112
control ports’ for further explanation).
r Coaxial digital audio output - Extracted
audio will always follow HDBaseT
output 2 source selection.
t Analogue audio outputs - Extracted
audio will always follow HDBaseT
output 2 source selection. Note: input
must be 2ch PCM for Analogue audio
output to work, does not downmix
5.1ch audio signals.
y HDMI output (output 1).
u HDBaseT output (output 2).
i HDBaseT input .
o HDMI input 1 to 4 - Connect to HDMI
sources.
p L/R In - Enables Analogue audio to be
embedded onto both HDMI/HDBaseT
outputs in Splitter mode and
HDBaseT output 2 in Matrix Switcher
mode.
a IR Ext. - Connect to Blustream IR
receiver or control processor when
using Blustream IRCAB cable (sold
separately).
s Power port - Use supplied 12V/5A DC
power supply.
Front Panel Rear Panel
1
2
3
4
2
3 4
7 8 9 106
Notes:
• Volume can be changed using IR, TCP/IP & RS-232 control or from the front panel UP and DOWN buttons when in the volume
menu.
8 18 20 2119
5 11
15 17
1
5 6
9
10
11 12 13 14 15 16 17
11 Input Multi-Format Presentation Switch
Matrix
Switcher
MFP112
