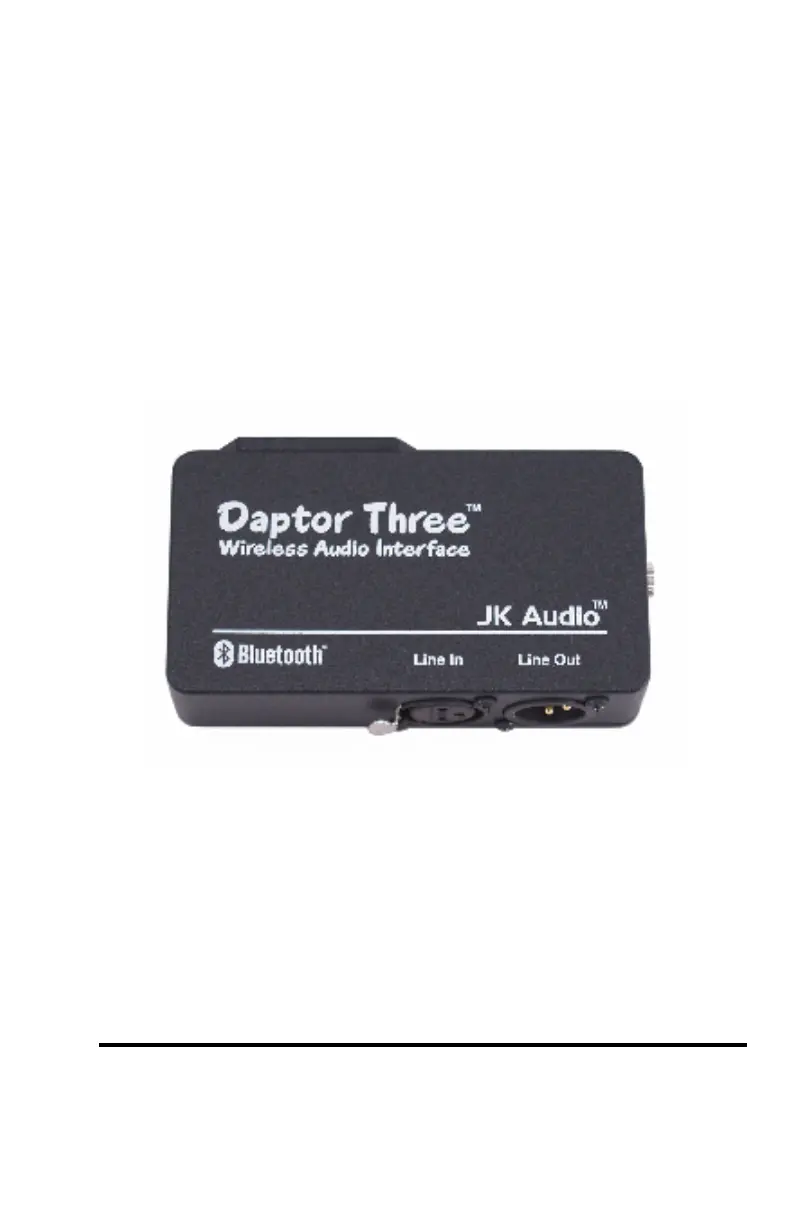

Daptor Three
Daptor ThreeDaptor Three
Daptor Three
Wireless Audio Interface
JK Audio
User Guide
2
Introduction
Daptor Three is a simple, professional audio interface using Blue-
tooth* Wireless Technology. This device allows balanced and un-
balanced connections to your cell phone. Daptor Three connects
to your cell phone like any other Bluetooth Wireless Technology
enabled headset. It will also connect to any other product, such as
a laptop, that allows wireless headset connections.
With the latest firmware release, Daptor Three can now be set to
function as a Master device, sending stereo audio to other devices
that support the A2DP profile.
There are many profiles that may be used for Bluetooth communi-
cation. Daptor Three is compatible with these three typically used
in cell phones and headsets:
A2DP (Advanced Audio Distribution Profile)
Headphone mode, used for stereo music
streaming.
30-20 kHz stereo, receive only, headphone mode
30-17 kHz stereo, master mode transmit
Headset Facilitates mono, full-duplex audio between two
paired devices.
300-3.4 kHz mono, both directions
Hands-Free Similar to Headset profile but allows the receiving
device more control over the call such as volume,
accept/reject/end a call.
3.4 kHz mono, both directions
Any Questions?
Before you pick up the phone... Please thumb through the rest of
this manual. You might find those deep technical questions are
covered on later pages.
* The Bluetooth word mark and logos are owned by the Blue-
tooth SIG, Inc. and any use of such marks by JK Audio, Inc. is un-
der license. Other trademarks and trade names are those of their
respective owners.
3
Features
1. Drawer for 9 V battery.
2. This LED flashes blue when setting up or using a Bluetooth
connection. See page 5 for timing diagrams. The LED will illu-
minate briefly when the unit is first powered on.
3. This Multi-Function Button (MFB) is used to establish a con-
nection with your Bluetooth enabled cell phone, laptop or other
device.
4. This Stereo LED will flash green when the device is in Master
mode and red when it is in Headset mode. See Page 6.
5. Stereo Line In - Connect the stereo output of your audio player
or other equipment to this jack to be sent to the caller.
6. Stereo Line Out - Connect this stereo output to the stereo line
input on your PC, mini recorder or other audio equipment.
7. Balanced XLR Line In - Connect the line level output of your
other audio equipment to this jack to be sent to the caller.
8. Balanced XLR Line Out - Connect this output to the line level
input on your recorder or other audio equipment.
1
2 3 4
5 6
7
8
