Page 1/8

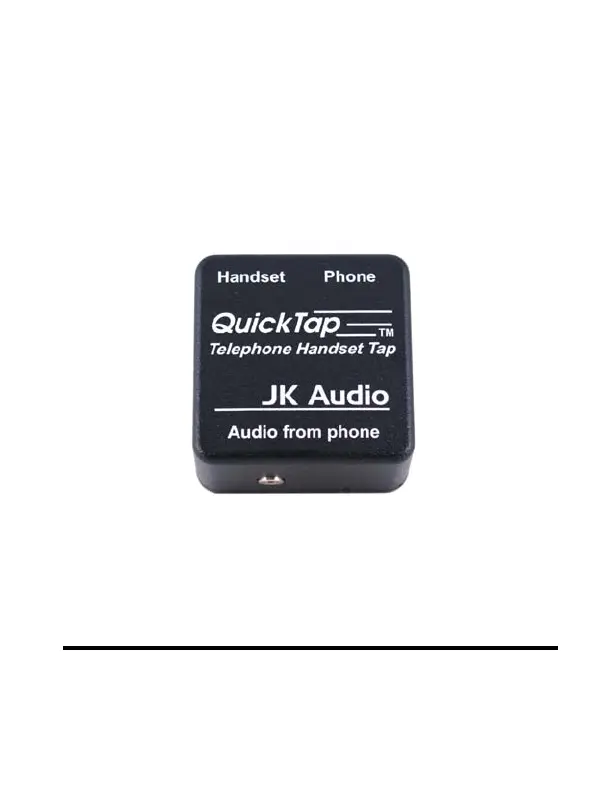

QuickTap
Telephone Handset Tap
JK Audio
User Guide
2
Install QuickTap between the handset and the
telephone base of your existing telephone.
1. Unplug the handset cord from your tele-
phone base.
2. Using the black handset jumper cord that we
have provided, connect the telephone jack of
QuickTap to the handset jack on your tele-
phone base.
3. Plug your handset cord, and handset, into
the handset jack on QuickTap.
4. Connect your audio equipment to the line
output jack on QuickTap.
Handset w/
modular plug
Telephone line
to wall jack
Audio equipment or
powered speakers or
computer Mic input
Connection
3
Operation
The Output Jack provides a mix of both sides
of the conversation. In other words, whatever
you send down the phone line will come back
on this jack mixed with the audio from the other
side of the call.
Two adapter cables are supplied with the
QuickTap. One cable has 1/8" mono connec-
tors on each end. This cable can be used to
connect QuickTap to the line input on some
powered speakers.
The second cord has a 1/8" stereo plug on one
end and an RCA mono plug on the other end.
The RCA plug is wired to the tip or left channel
of the stereo plug. The ring or right channel is
not connected. Use this cable to connect
QuickTap to powered speakers or amplifiers
equipped with RCA jacks.
Product Specifications
| Brand: | JK Audio |
| Category: | Hi-fi system |
| Model: | QuickTap |
