User Guide
RemoteMix 4
Portable Broadcast Mixer
JK Audio
2
Introduction
RemoteMix 4 is a four channel field mixer combined with a four chan-
nel headphone amplifier. It includes a telephone line hybrid and key-
pad, as well as a universal PBX handset interface and a 2.5 mm wire-
less phone interface. All this comes in a tough, portable unit that's
smaller than a lunch box. These parts were designed to work together
and save setup time in the field. There is no need to send an engineer
with patch cables. All the pieces work together in one reliable unit.
RemoteMix 4 also connects to any Bluetooth* Wireless Technology
enabled device. This “hands free” mode offers a mono, telephone-
bandwidth connection. RemoteMix 4 will connect to any Bluetooth
enabled cell phone, or other device such as a notebook or portable
that allows a stereo wireless headset connection. This stereo headset
mode offers full audio bandwidth.
Radio - RemoteMix 4 was designed for sports remotes. You can use
it as a phone line hybrid, calling into your studio talk show hybrid. Or,
use it as a front end mixer for your POTS, ISDN or IP codec. You can
also use it with your laptop codec.
TV - RemoteMix 4 gives you the ultimate phone connectivity with four
IFB feeds. You can send and receive interview audio, and pull IFB out
of any business phone system, or even from your cell phone. This is
more than a field mixer, this is a shoot saver.
Great Sound - A soft limiter prevents overdriving the phone line inter-
faces, while the mixer XLR output is pre-limiter (full range). Bass
Boost adds some low end before sending the signal down the phone
line. The 3.5 mm Send and Receive jacks are convenient for re-
cording the show, or mixing in your MP3 player.
Power Smart Design - The phantom power generator only runs if any
of the rear panel 48 V switches are set to “ON” to avoid any unneces-
sary drain on batteries. Low noise, low power ICs are used through-
out to preserve battery life. The low noise 100-240 VAC desktop style
power supply (included) overrides the battery power only when the
supply is actually providing power. If the power goes out, the batteries
automatically cut in.
*The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by JK Audio, Inc. is under license. Other trade-
marks and trade names are those of their respective owners.
3

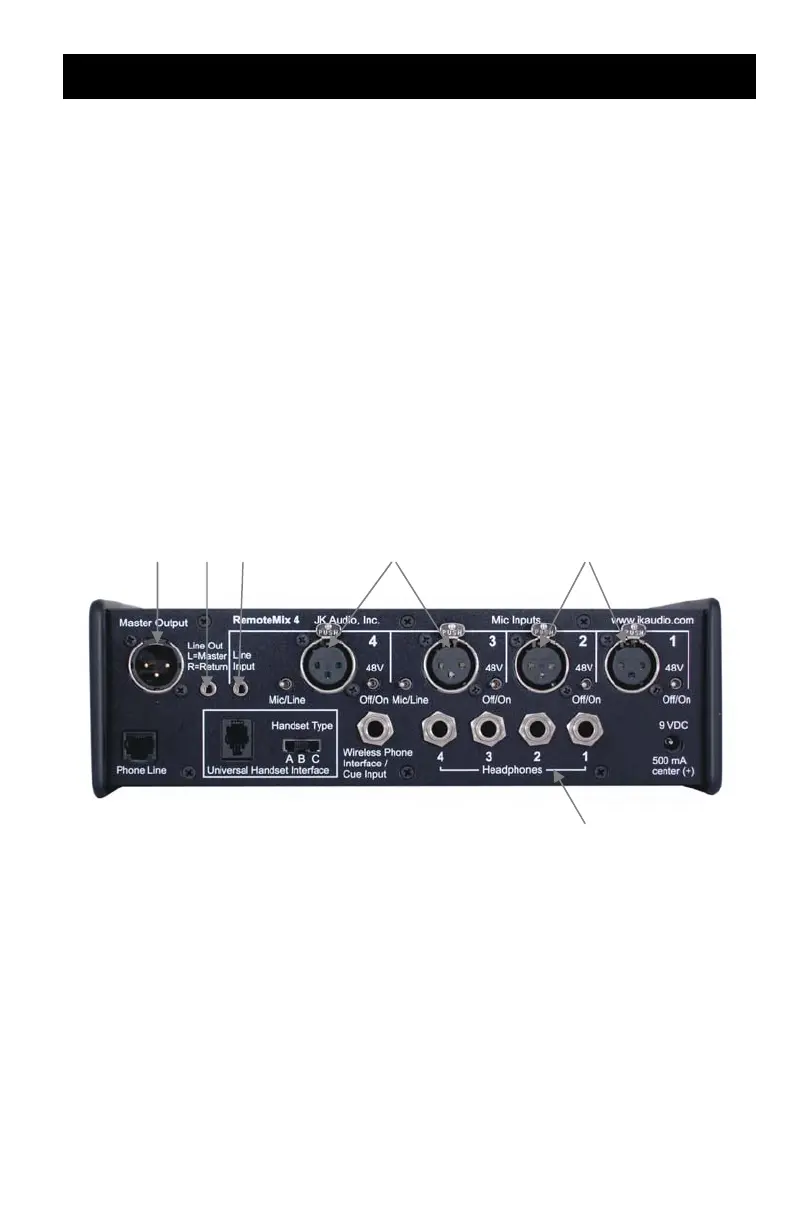

1. Mic inputs 1 and 2 are balanced XLR jacks with low-noise amplifi-
ers.
2. Mic inputs 3 and 4 are balanced XLR jacks with low-noise amplifi-
ers. A mic/line selector switch adds a 40 dB pad for a line level
balanced input.
A switch on each of the 4 XLR mic inputs will provide 48 V phan-
tom power. If inputs 3 or 4 are set to Line input, the 48 V will not
be present at the XLR jack even if the switch is left on.
3. The stereo 3.5 mm line level input can be used instead of or in
addition to the channel 4 XLR input. You can connect either a
mono or stereo signal to this mini jack. If you use a stereo input,
both channels will immediately be summed together. Then the
audio from the mini jack and the XLR would be added together
and treated as one mono signal on channel 4.
Connection
1 2 3 5 4
4. The stereo 3.5 mm line level output can be connected to your mini
disk or other recording device. The Master Output will be on the
Left channel and the Receive mix from the phone line and/or Cue
input will be on the Right channel.
5. The Master Output is a balanced XLR jack that contains the sum
of all four input XLRs and the 3.5 mm input. This audio signal has
a full 20 Hz to 20 kHz bandwidth.
6. Each of the four mono headphone jacks can be set to hear either
a mix of local mic and line inputs or the return from the phone line
which will include a lesser amount of your local mix.
6
