© LINDY Group - THIRD EDITION
(June 2024)
DST-Pro USB4, USB-C Laptop
Docking Station
User Manual English
Benutzerhandbuch Deutsch
Manuel Utilisateur Français
Manuale Italiano
Manual del Usuario Español
No. 43372
lindy.com
User Manual English
Introduction
Thank you for purchasing the Lindy USB-C Laptop Docking Station. This product has been designed to
provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty and free lifetime
technical support. To ensure correct use, please read this manual carefully and retain it for future
reference.
This Laptop Docking Station of the latest USB4 generation is a high performance, multifunctional solution
for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort
or HDMI® display or two displays simultaneously at 4K 60Hz*. Through a single USB-C cable, connect to
multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit
Ethernet, (Micro-) SD card slots, DisplayPort and HDMI®.
The USB4 Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop
or peripheral devices (power supply not included). The dock can be used with the power supply supplied
with the laptop or a power supply can be purchased separately.
Package Contents
• USB-C Laptop Docking Station
• USB4 Type C cable (appr. 0.8m)
• This Manual
Specification
• Host Interface: USB4 (40Gbps)
• Connects an HDMI® and/or DP display to your laptop
• Max. resolutions (single display): 7680x4320 30Hz, 3840x2160 120Hz
• Max. resolution for dual displays* (MST - macOS does not support MST): 3480x2160 60Hz
• 4 Port USB 3.2 / 3.1 Gen 2 10Gbps Hub: 3x USB Type A and 1x USB Type C
• 3 Port USB 2.0 480Mbps Hub (for mouse, keyboard etc.) : 3x USB Type A
• 1x USB Type C Power Delivery port (PD 3.0 up to 20V / 5A)
• Supports Gigabit Ethernet 10/100/1000Mbps
• 1x SD and 1x Micro SD slot (SD 3.0 up to 1Gbps), compatible with SDXC, SDHC, SD, MMC, RS-
MMC, Micro SDXC, microSD, micro SDHC, UHS-I
• 1x 4 segments combo Audio port (1x in, 1x out)
• Compatible with computers with USB4 / 3.2 / Thunderbolt 3/4 Type C interface and DisplayPort
Alternate mode
• Special Features: 3x USB Gen 2 Type A Battery Charging 1.2 ports (total current limit is 2.3A),
Supports MST for Windows, supports simultaneous card reading (microSD), PXE (Preboot
Execution Environment) and Wake on LAN (WOL) support
Physical Properties
•
Dimensions WxDxH: 129x69.5x48mm (5.08x2.74x1.89in)
•
Housing Material: Aluminium Alloy
•
Net Weight: 0.3kg (0.66lb)
•
Operating Temperature: 0°C - 40°C (32°F -104°F)
•
Storage Temperature: -10°C - 70°C (14°F - 158°F)
•
Humidity: 10 - 90% RH (non-condensing)
User Manual English
•
Power Requirements: 20W
•
Colour: Anthracite
Installation & Operation
Connect the Docking Station to your laptop or tablet using the supplied USB4 Type C cable. Any required
drivers will be automatically downloaded from the internet.

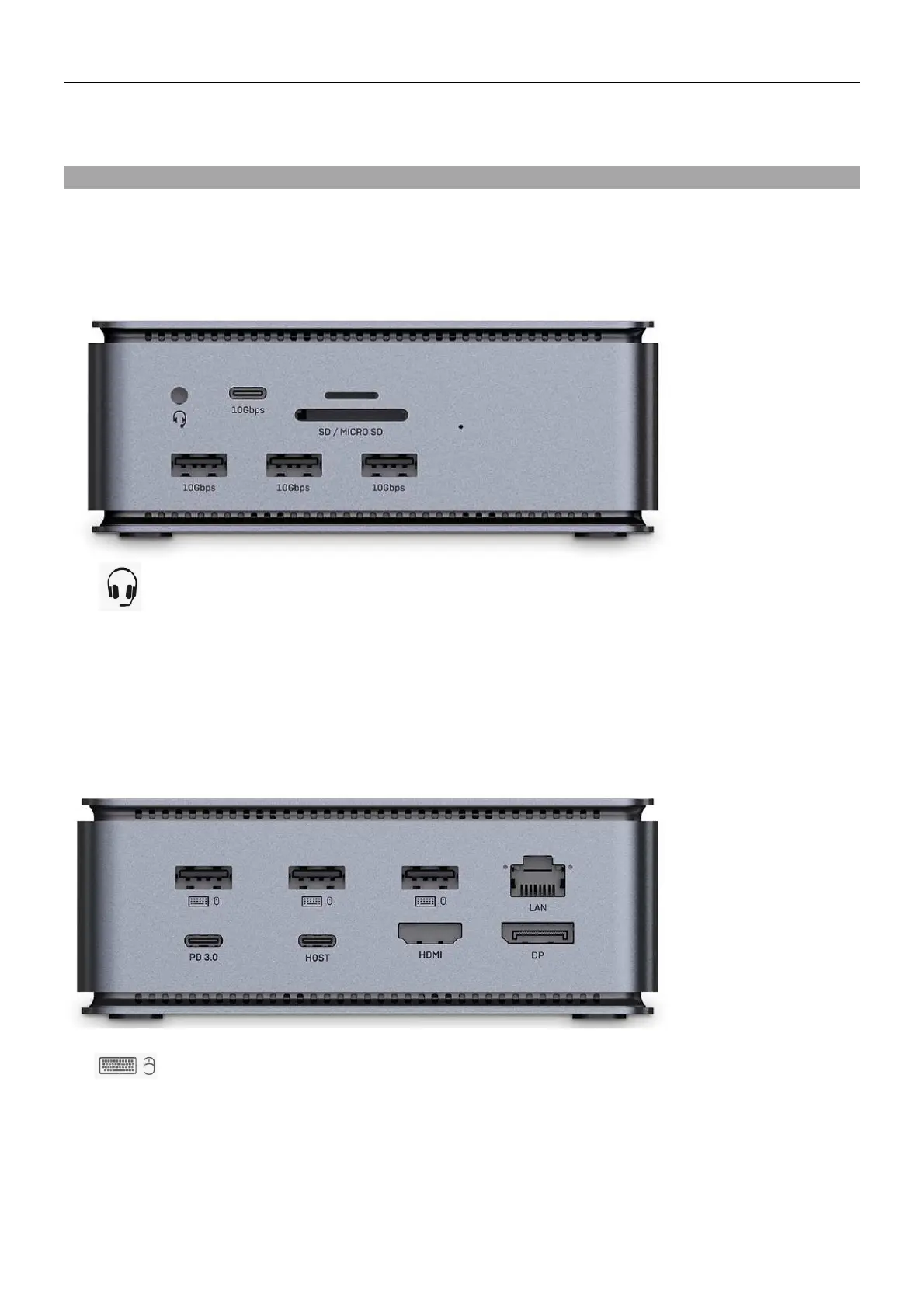

Front (from left to right, from top to bottom):
•
: 3.5mm Stereo Audio input/output to connect headphones, speakers or microphone.
•
10Gbps: Connect USB Type C devices (support up to 10Gbps)
•
SD/MicroSD: Card reader for SD and microSD cards
•
10Gbps: Connect USB Type A devices (support up to 10Gbps) as well as Battery Charging 1.2 for
fast charging
Rear (from left to right, from top to bottom):
• : Connect USB Type A devices (support up to 480Mbps)
• LAN: Connect to a network LAN using a Cat.5e or above cable
• PD 3.0: Connect a Type C PD power supply (i.e. of your laptop or tablet) to provide power to the host
computer.
• Host: Connect a Type C source (i.e. laptop or tablet) using the included USB4 Type C Male to Male
cable.
