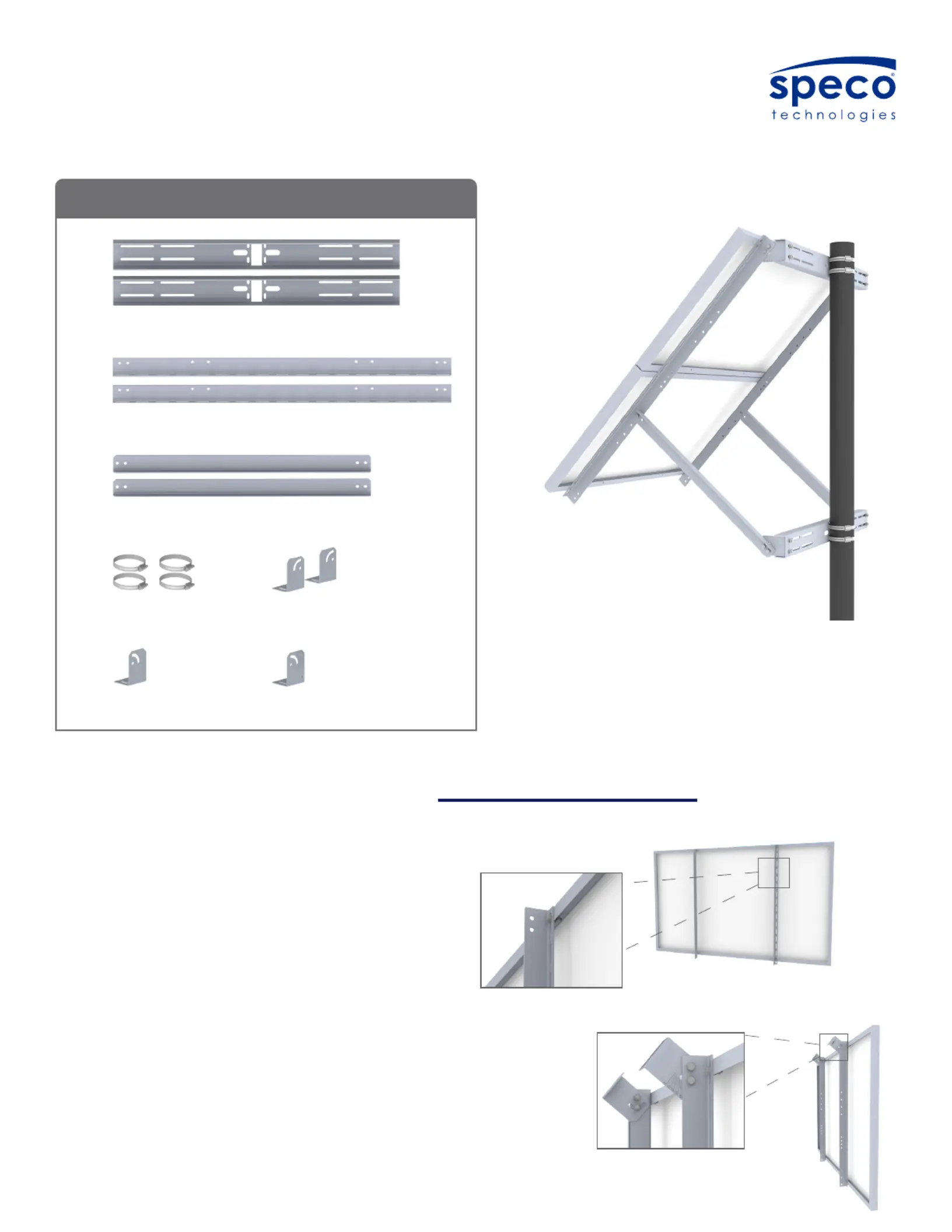

SXA200 | SXA300 | SXA400
STEP 1
1. Mount the Long Rails (SPM-A-55 or SPM-A-42)
to the Solar Panel using the existing holes on
the rear of the panel.
2. Bolt 4 points per Solar Panel.
3. Max width between holes should be 38”
(drilling may be required).
STEP 2
1. Panels should face directly south.
2. Attach the engraved SPM-LB-L-ENG and (1) SPM-LB-R to
the SPM-A-55 or SPM-A-42 rails using the provided hardware.
Accessories
2x
2x
2x
1x
2x
4x
1x
SPM-A-55 or SPM-A-42
SPM-C-35
SPM-A-32
Hose Clamps SPM-LB-R
SPM-LB-L SPM-LB-ENG
SXA200
SXA300
SXA400
ASSEMBLY
Installation Guide
Solar Panel Mounting
Install Guides

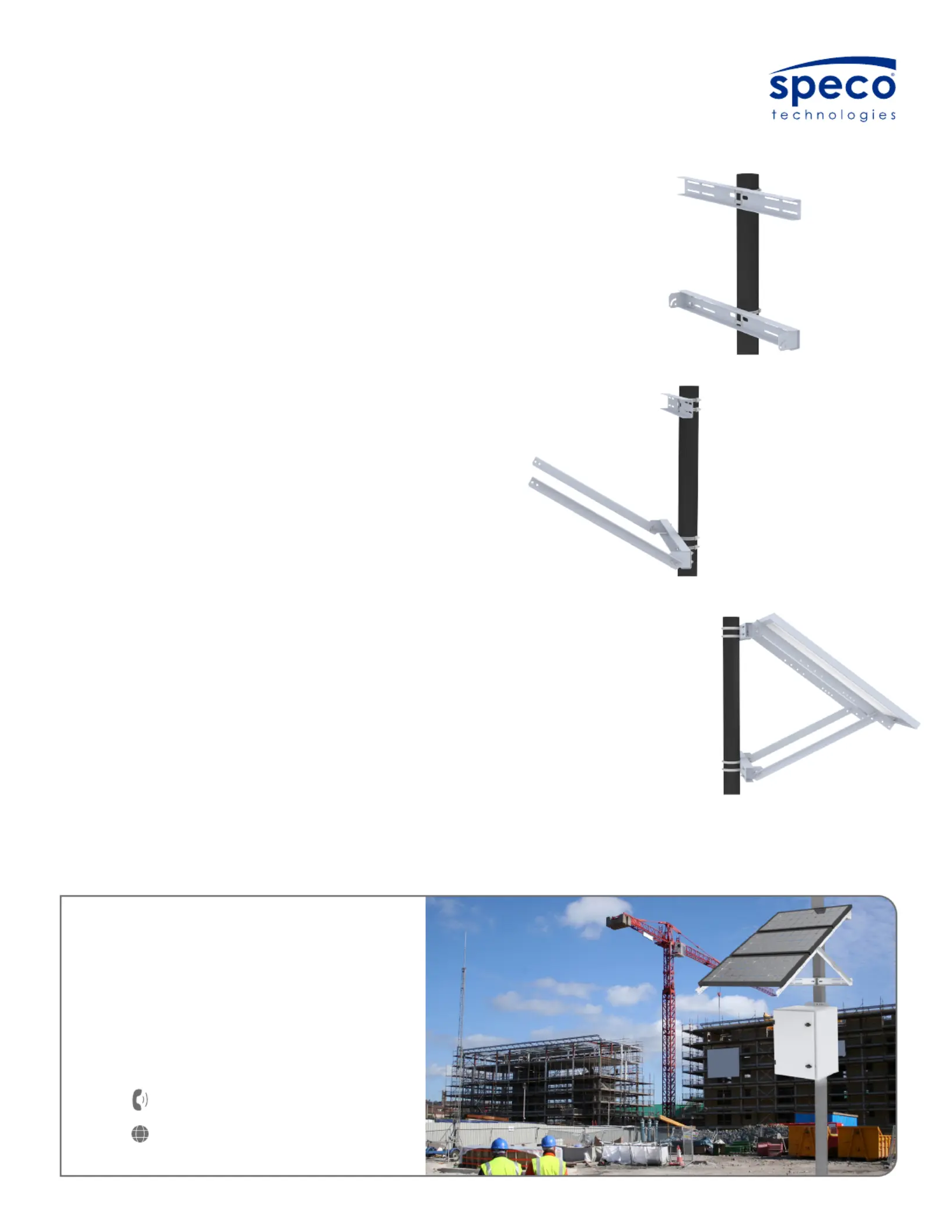

SXA200 | SXA300 | SXA400
STEP 3
1. Attach the two SPM-C-35 channels to the pole using the provided hose
clamps.
2. Tighten the hose clamps of the upper SPM-C-35 at the height the top
of the solar panel will be mounted.
3. Leave the two lower hose clamps slightly loose so the lower SPM-C-35
can be adjusted later.
4. Attach the second pair of clips, SPM-LB-L and SPM-LB-R to the lower
SPM-C-35.
STEP 4
1. Attach the two SPM-A-32 braces to the lower SPM-C-35.
STEP 5
1. Attach the solar panel assembly completed in step two, to the upper SPM-C-35.
2. Attach the SPM-A-32 braces to the appropriate holes in the SPM-A-55 or
SPM-A-42 rails.
3. Check that the angle is correct and tighten all the bolts. To adjust the angle,
loosen the appropriate bolts and hose clamps that hold the lower SPM-C-35.
4. Lower or raise the lower SPM-C-35 and re-tighten all hose clamps and bolts.
CONNECT
WITH US
TODAY
1.800.645.5516
SPECOTECH.COM
