Page 1/3
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code to
access the manual in multiple languages.

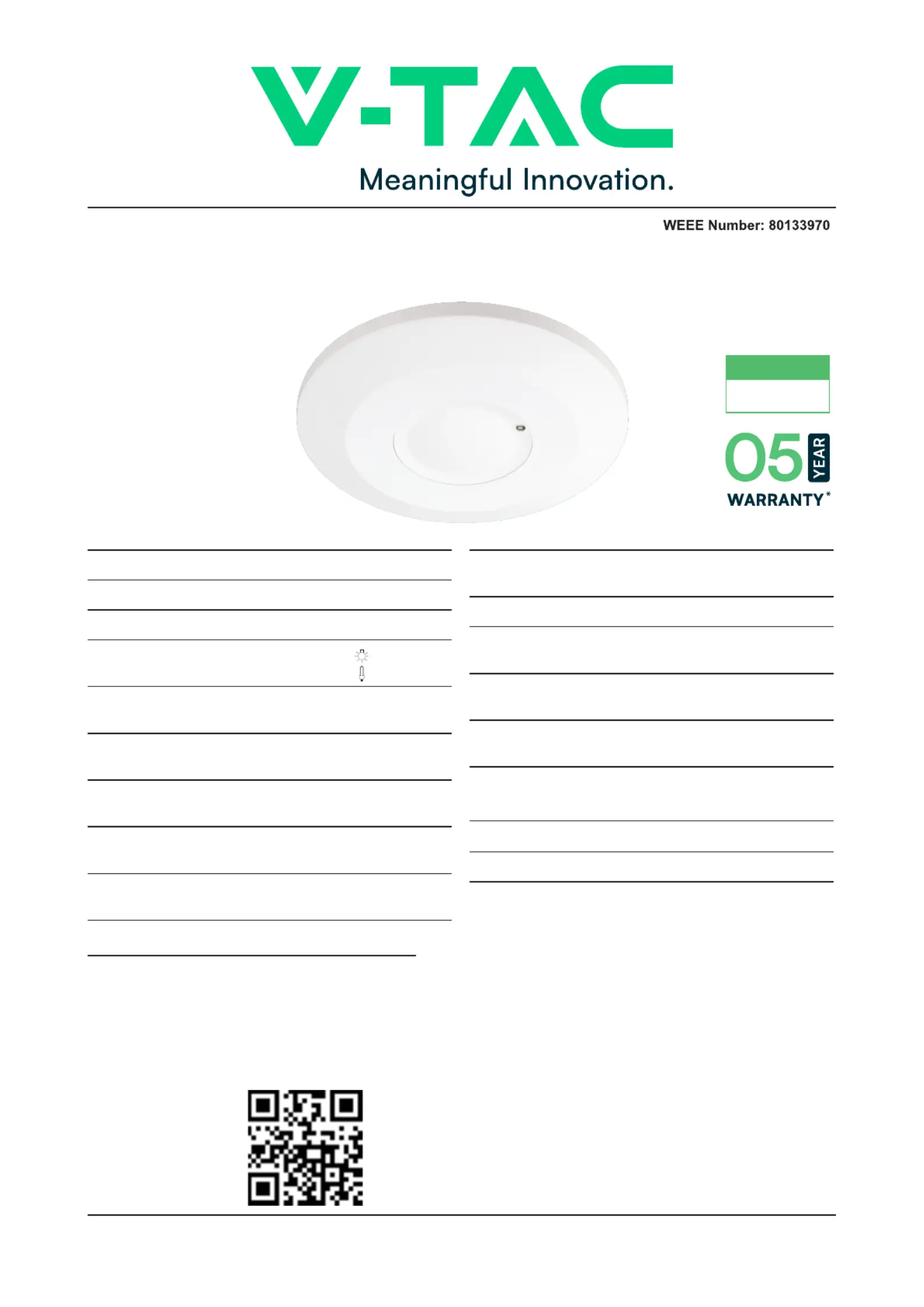

INSTRUCTION MANUAL
MICROWAVE SENSOR CEILING MOUNT
TECHNICAL DATA
MODEL VT-81001
SKU 23163
INPUT POWER AC: 220-240V, 50/60 Hz
RATED LOAD Max. 2000W
1000W +LED
TIME DELAY Min. 10sec Ā±3sec
Max. 12min Ā±1min
DETECTION
RANGE 360Ā°
DETECTION
DISTANCE 1-8m(Radius), Adjustable
DETECTION
MOVING SPEED 0.6-1.5m/s
WORKING
TEMPERATURE -20Ā°C to +40Ā°C
POWER
CONSUMPTION Approx, 0.9W
AMBIENT LIGHT <3-2000 LUX (Adjustable)
INSTALLATION
HEIGHT 2-6m
POWER
CONSUMPTION Approx 0.9w
DETECTION
MOTION SPEED 0.6-1.5 m/s
HF SYSTEM 5.8 Ghz CW Radar,
ISM Band
IP RATING IP20
DIMENSION Ć115x24.3 mm
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
V-TAC LED
RANGE (UPTO 1000W)
COMPATIBLE WITH
This marking indicates that this prod-
uct should not be disposed of with
other household wastes.
Caution, risk of electric shock.
FUNCTION
WARNING
1. Can identify day and night: It can work in the daytime and at night when it is adjusted on the
āsunā position (max). It can work in the ambient light less than 3LUX when it is adjusted on the
ā3ā position (min). As for the adjustment pattern, please refer to the testing pattern.
2. SENS adjustable: It can be adjusted according to using location. The detection distance of low
sensitivity could be only 2m and high sensitivity could be 16m which ļ¬ts for large room.
3. Time-Delay is added continually: When it receives the second induction signals within the ļ¬rst
induction, it will restart to time from the moment.
4. TimeāDelay is adjustable. It can be set according to the consumerās desire. The minimum time
is 10secĀ±3sec. The maximum is 12minĀ±1min.
NOTE: the high-frequency output of the HF sensor is
<0.2Mw- that is just one 5000th of the transmission
power of a mobile phone or the output of a microwave
oven, the baby canāt touch it.
The wires come in and
out from the bottom
The wires come in and
out from the side
INSTALLATION
CONNECTION-WIRE DIAGRAM
ā¢ Please move the upper cover with anti-clockwise
whirl as per the diagram on the right.
ā¢ Connect the power and the load according to
the connection-wire diagram.
ā¢ Fix the bottom on the selected position with the
inļ¬ated screw.
ā¢ Install back the upper cover on the sensor, then
you could switch on the power and test it.
1. Please make sure to turn oī¬ the power before starting the installation.
2. Installation must be performed by a qualiļ¬ed electrician.
3. For Indoor use only
ā¢ Turn the TIME knob anti-clockwise on
the minimum (10s). Turn the SENS knob
clockwise on the maximum (+). Turn the
LUX knob clockwise on the maximum
(sun).
ā¢ When you switch on the power, the light
will be on at once. And 10secĀ±3sec later
the light will be oī¬ automatically. Then if
the sensor receives induction signal again,
it can work normally.
ā¢ When the sensor receives the second
ā¢ Electrician or experienced human can install it.
ā¢ Can not be installed on the uneven and shaky surface
ā¢ In front of the sensor there shouldnāt be obstructive object aī¬ecting detection.
ā¢ Avoid installing it near the metal and glass which may aī¬ect the sensor.
ā¢ For your safety, please donāt open the case if you ļ¬nd hitch aī®er installation.
ā¢ In order to avoid the unexpected damage of product, please add a safe device of current 6A
when installing microwave sensor, for example, fuse, safe tube etc.
1. The load donāt work:
a. Check the power and the load.
b. Whether the indicator light is turned on aī®er sensing? If yes, please check load.
c. If the indicator light is not on aī®er sensing, please check if the working light corresponds to the
ambient light.
d. Please check if the working voltage corresponds to the power source.
2. The sensitivity is poor:
a. Please check if in front of the sensor there shouldnāt be obstructive object that aī¬ect to receive
the signals.
b. Please check if the signal source is in the detection ļ¬elds.
c. Please check the installation height.
3. The sensor canāt shut automatically the load:
a. If there are continual signals in the detection ļ¬elds.
b. If the time delay is set to the longest.
c. If the power corresponds to the instruction.
TEST
NOTES
SOME PROBLEM AND SOLVED WAY
Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise ā¼
the sensor lamp could not work!
induction signals within the ļ¬rst induction, it will restart to time from the moment.
ā¢ Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is less than 3LUX (dark-
ness), the inductor load could work when it receives induction signal.
