DS-DELL-100 Series/200 Series/210 Series
Havis Rugged Mobile Docking Station
For Dell XFR & ATG Computers
DS-DELL-110-230_OMN_8-12
www.havis.com
1-800-524-9900
DS-DELL-111
DS-DELL-111-3
DS-DELL-113
DS-DELL-231
DS-DELL-233
Owner’s Manual
Havis Rugged Mobile Docking Station
For Dell XFR & ATG Computers
DS-DELL-110 Series / DS-DELL-230 Series
Havis, Inc.
75 Jacksonville Road, PO Box 2099
Warminster, PA 18974
47801 Anchor Court
Plymouth, MI 48170
www.havis.com 1-800-524-9900
www.havis.com • 1-800-524-9900
DS-DA-208
Card Reader Mounting Bracket
Mount an E-Seek Model 250 card reader to the side
of the Docking Station.
(Bracket can be customized for other Card Reader Models)
DS-DA-408
Screen Stiffener
Secure your laptop screen to prevent excess wear and
reduce vibration while in use.
LPS-105
90W Power Supply
External power supply and cable for Dell Laptops with
cigarette lighter adaptor.
DS-DA-102
USB Powered Light
Soft red LED light illuminates the laptop keyboard
for night viewing.
Related Products
Havis offers a wide variety of accessory products specically for
use with the DS-DELL-110 & DS-DELL-230 Series Docking Station.
For more information or to order, please visit www.havis.com.
Interactive Online Catalog
Our interactive catalog is an easy-to-use, full color,
online version of our printed catalog.
Visit www.haviscatalog.com for direct access
to the Interactive Catalog.
Mounting Solutions Computing Solutions Power Management
Solutions
Transport Solutions Lighting Solutions
Product
Catalog
www.havis.com 1-800-524-9900
DS-DELL-111
DS-DELL-111-3
DS-DELL-113
DS-DELL-231
DS-DELL-233
Before Beginning
(Original Instructions)
2 11
• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE
AIRBAG DEPLOYMENT ZONE.
• DO NOT USE COMPUTER WHILE DRIVING.
• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT MATE COMPUTER TO DOCKING STATION UNLESS COMPUTER’S DOCKING
CONNECTOR ACCESS DOOR IS FULLY OPEN OR DAMAGE MAY RESULT. (SEE BELOW)
Havis is pleased to provide this Owner’s Manual to aid in the proper installation
and use of the DS-DELL-110 Series/230 Series Docking Station for the
Dell XFR & ATG laptop computers.
For questions regarding the set-up of your DS-DELL-110 Series/230 Series Docking
Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional
product support and information.
This Owner’s Manual applies to the following Part Numbers:

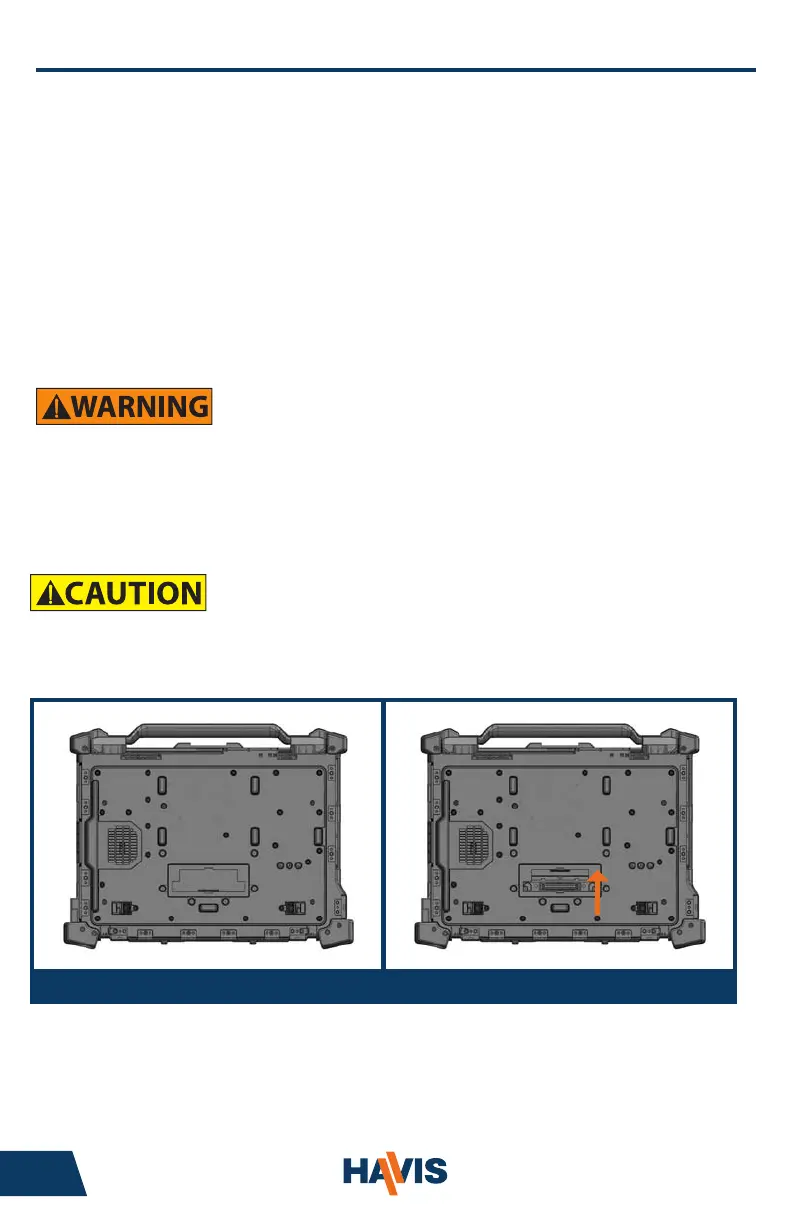

Dell E6420 XFR shown with Connector Access Door in closed position (left) and open position (right)
www.havis.com • 1-800-524-9900
1) If previously locked, unlock Docking Station using supplied key.
2) To release Latch Handle, press in the Lock, and the Latch Handle will spring
open to the Unlatched position.
Note: Red warning label on Latch Handle is visible when fully extended. If Latch Handle
does not extend fully, pull outward until red warning label is completely visible.
3) Once unlatched, grab both sides of computer and carefully lift out of
Docking Station, rear end rst.
5) For theft deterrence, secure computer by locking Docking Station with
supplied key (Hardware Kit Item 2).
6) Power on computer. The Laptop Power Button LED will illuminate blue to
indicate proper system function. Once docked, the Laptop Power Button may
be used to power computer on/off.
• FOR SAFE & PROPER SYSTEM FUNCTION, SPECIFIC DOCKING STATION MODELS
MUST BE USED WITH SPECIFIC DELL COMPUTER MODELS.
- DS-DELL-110 SERIES (111, 113, ETC.) DOCKING STATIONS ARE INTENDED FOR USE
WITH DELL E6400, E6410 & E6420 XFR COMPUTERS ONLY.
- DS-DELL-230 SERIES (231, 233) DOCKING STATIONS ARE INTENDED FOR USE
WITH DELL E6400, E6410, E6420 & E6430 ATG COMPUTERS ONLY.
- THE PORT COVERS SUPPLIED WITH DELL E6400 & E6410 ATG COMPUTERS
MUST BE REMOVED PRIOR TO DOCKING.
- THE PORT COVERS SUPPLIED WITH DELL E6420 & E6430 ATG COMPUTERS
MAY REMAIN SECURED TO COMPUTER WHILE DOCKING.
• COMPUTER & DOCKING STATION IDENTIFICATION:
10 3
Operation - Docking (continued)
Operation - Undocking
Lock
Laptop Power
Button / LED
Lock
Lock
Latch Handle
COMPUTER MODEL DOCKING STATION IDENTIFICATION
E6400/6410/6420 XFR
* USB will operate at USB 2.0 speed
DS-DELL-110 Series
No Foot Pads on
top plate.
Low prole Front
Hooks.
E6400/6410/6420/E6430 ATG DS-DELL-230 Series
Foot Pads on top plate.
Macro Alignment
Brackets attached.
• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specied Power Supply (Part # LPS-105) with this Docking Station
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specied for
• Do not leave the Docking Station in a high temperature environment (greater than 75°C, 167°F)
for a long period of time
Precautions
RearFront
Product Specifications
