8-Port Gigabit Ethernet PoE+
Industrial Switch with 2 SFP
Ports Instructions
Model 508261 (IIS-8G02POE)
2
The Intellinet 8-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports offers
an array of time-saving, cost-effective features while providing superior network
throughput. No configuration is required and installation is plug and play.
For specifications, visit intelllinetnetwork.com/barcode/508261.
Features
• Provides power and data connections for up to eight PoE network devices
• IP40 slim-type metal housing to withstand harsh industrial conditions
• Wide operating temperature: -40 – 75°C (-40 – 167°F)
• Option for DIN-rail installation
• Two small form-factor pluggable GBIC module slots (SFP)
• Two redundant DC inputs (45 – 57 V) with I/O terminal block
With a backplane speed of 20 Gbps, plenty of performance is available for your
computers, servers and other networking devices. Each of the ports automatically
senses the link speed of the connected network device and adjusts to 10, 100
or 1000 Mbps for compatibility and maximum performance. This PoE switch is
designed to provide compatible devices with enough power when needed. It offers
up to 30 watts of power per port until its power budget of 240 watts is reached.
Front Panel
LED Color Status Status Description
PWR Green On Power on
Off Power off
Link/Act
1 – 8 /
SFP
1 & 2
Green
On Valid port connection
Blinking Sending or receiving data
Off No link established
PoE Orange On The connected device
is receiving power
Off No PSE/PoE device is linked
English
Instructions 8-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports
3
Power

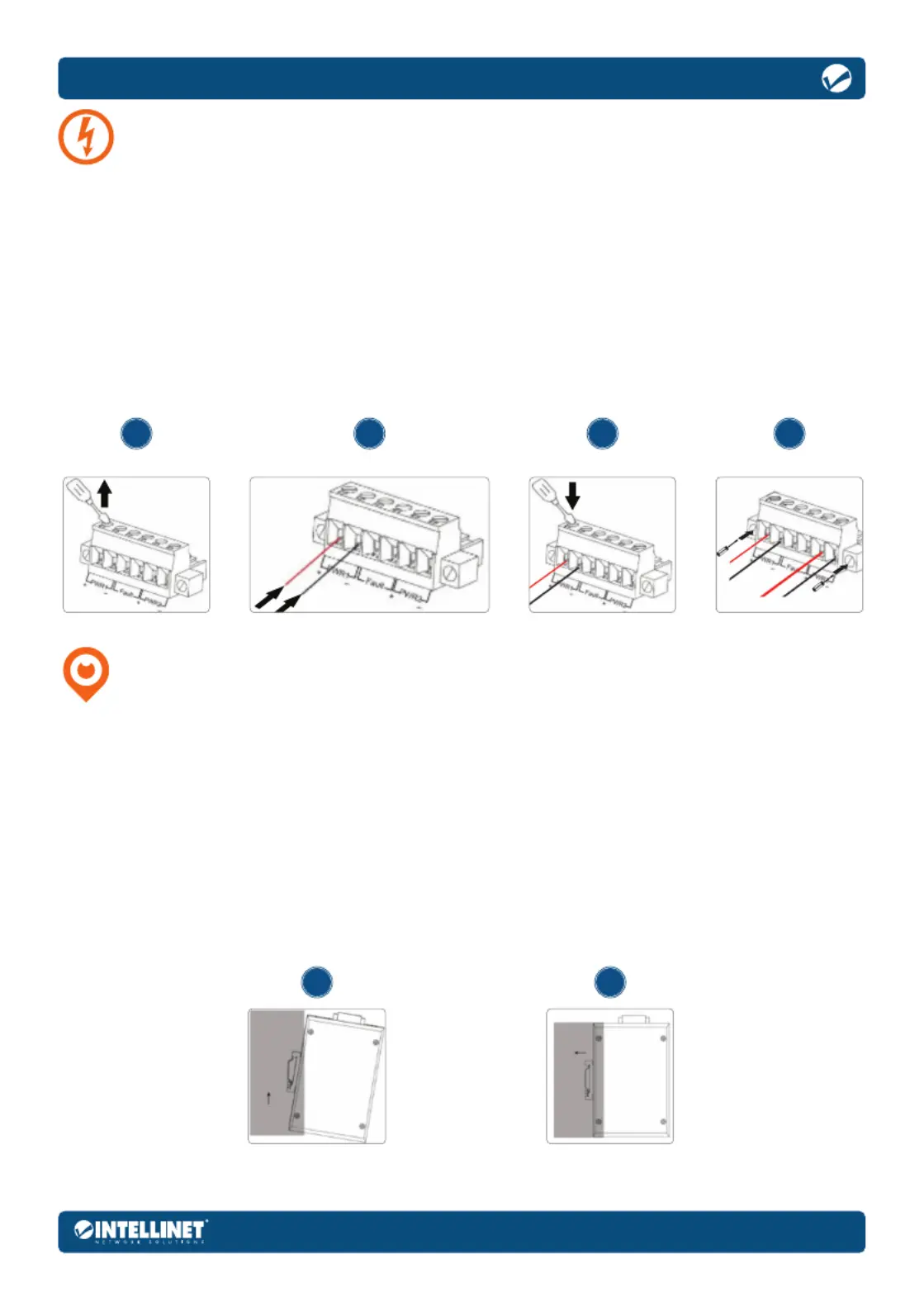

Terminal Block Installation
NOTE: Ensure all power is off/disconnected before beginning!
1 Loosen appropriate screws.
2 Insert bare power-supply wires into appropriate terminal slots (positive
wire into positive slot; negative wire into negative slot).
3 Tighten appropriate screws to secure wires. (If desired,
repeat steps 1 – 3 on second input pair.)
4 Install block into the device and tighten screws.
Placement
Desktop Installation
Prior to use, place/position the switch:
• on a level surface with at least 25 mm (approx. 1”) of clearance for ventilation
• away from sources of electrical noise: radios, transmitters, broadband amplifiers
within 100 m (approx. 328’) of network devices it’s to be connected to.
DIN-Rail Installation
1 With DIN-rail bracket attached to device with screws, angle bracket onto DIN rail.
2 Push device in till it clicks into place.
1 2 3 4
1 2
Instructions
English
8-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports
