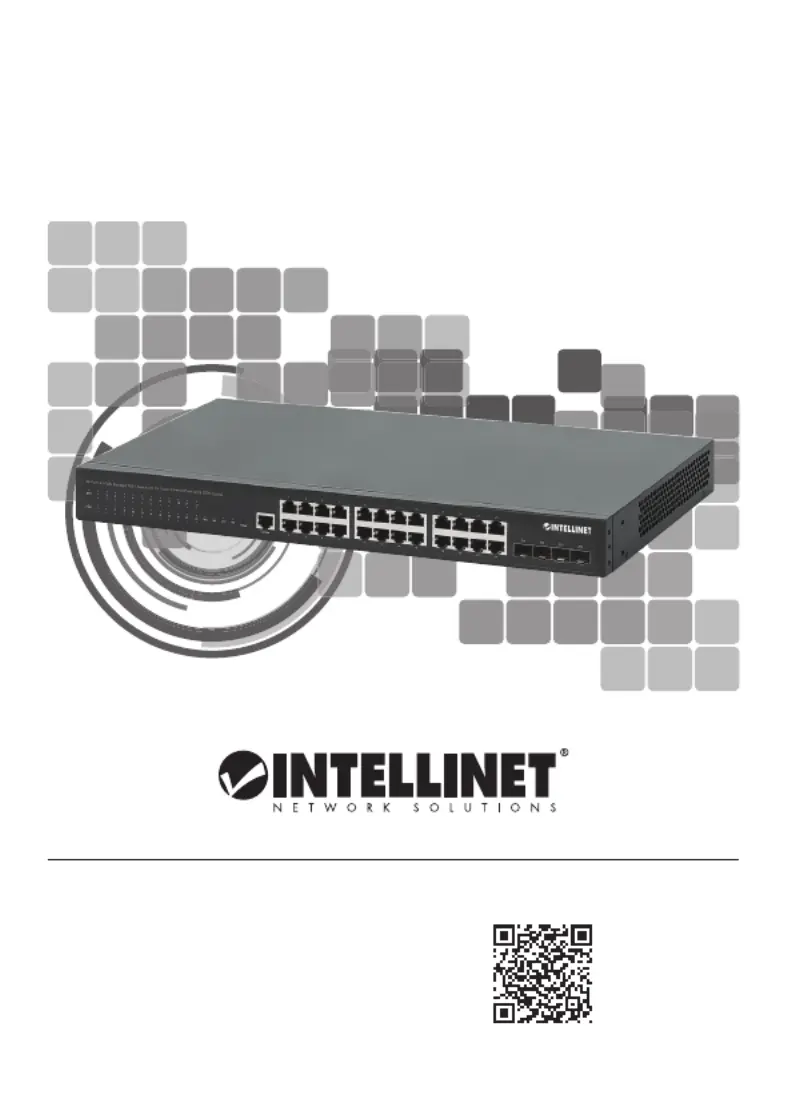

Page 1/16
Scan to
register your
product warranty
Important: Read before use. β’ Importante: Leer antes de usar.
For additional beneξts:
or go to: register.intellinet-network.com/r/561846
28-Port L2+ Fully Managed PoE+
Switch with 24 Gigabit Ports and 4
SFP+ Uplinks
Instructions
Model 561846 (IPS-28GM04-10G-370W)
2
This guide presents the basic steps to set up and operate this device.
For the user manual and specifications, visit intellinet-network.com.
Register your product at register.intellinet-network.com/r/561846
or scan the QR code on the cover.
Placement
Prior to use, it is recommended that the switch be placed/positioned:
β’ on a level surface that can support the
weight of the switch (and any other
items that need to be considered);
β’ with a minimum of 25 mm
(approx. 1β) of clearance
on the top and sides for adequate ventilation;
β’ away from sources of electrical noise: radios,
transmitters, broadband amplifiers, etc.;
β’ where it cannot be affected by excessive moisture;
β’ within 100 m (approx. 328β) of network devices itβs to be connected to.
The switch includes brackets and screws for optional rack mounting.
1 Disconnect any cables from the switch.
2 Position a bracket over the mounting
holes on one side of the switch and
secure it in place with screws.
3 Repeat Step 2 on the other side of the switch.
4 Position the switch in the rack and
screw the brackets to the rack.
5 Reconnect any cables.
Chassis Ground Column
Located on the side of the power supply connector, a grounding terminal
connector is used to provide proper grounding for your Intellinet Network
Solutions switch. If you use the chassis grounding screw, it should be
wired to an object that provides earth ground. In rackmount installations,
grounding is typically provided by the metal frame of the mounting rack.
English
Instructions
3English
Connections
All ports on the switch support Auto-MDI/MDI-X functionality,
so you can use straight or crossover UTP/STP cables to connect
the RJ45 ports to PCs, routers, hubs, other switches, etc.
β’ Cat5e/6/6a/8.x UTP/STP cables provide optimal performance;
if a status LED doesnβt indicate a link or activity, check the
corresponding device for proper setup and operation.
β’ Use the included power cable to connect the receptacle
on the back of the switch to a power outlet.
LED Color Status Description
PWR Green On Unit is receiving power.
Off Check connection.
SYS Green Blinking System is normal.
Off System not started.
Link / ACT
/ Speed
1 β 24
10/100M:
Orange;
1000M: Green
On Valid port connection.
Blinking Data transmitted/received.
Off No link established.
PoE 1 β 24 Yellow
On The connected device is receiving power.
Blinking Abnormal power supply at the port.
Off No PD device is linked.
25S β 28S 1G: Orange;
10G: Green
On Valid port connection.
Blinking Data transmitted/received.
Off No link established.
Basic Web-Based Browser Management
1 Open your Web browser.
2 http://Enter and the IP address of the switch in the Address
field. The default management IP address is . 192.168.2.1
3 EnterPress to display the login screen. In the Username
field, enter ; in the Password field, enter the admin serial
number OK on the bottom of the switch. Click .
*
Instructions
